Napari with Clemreg and Empanada

Introduction

Napari is a fast, interactive viewer for multi-dimensional images. It is written in Python and designed to handle large, high-dimensional datasets. For researchers working with volume EM data, it is a powerful tool for tasks including segmentation, registration and visual inspection of 3D images. Napari's functionality is extendible through community-developed plugins.

Tip

Napari is a community-driven open-source project; you can find more about the community and contributing on the napari website.

The RFI napari-clemreg-empanada container provides a Napari instance with two key plugins for volume EM workflows:

  • CLEM-Reg (napari-clemreg), an automated point cloud based registration algorithm
  • Empanada (empanada-napari), for deep learning-based panoptic segmentation of 2D/3D EM images

Starting Napari

Prerequisites: This guide assumes you have a graphical environment available (e.g., a local X11 server or accessing a VM through RDP). Napari is primarily a GUI application and requires display capabilities to run interactively.

Warning

While Napari may be run without a GPU, the segmentation in Clemreg and Empanada requires a NVIDIA GPU, and the container may crash if you try to use these plugins without one.

Apptainer

First, ensure Apptainer is available on your system (module load apptainer for RFI users). The napari-clemreg-empanada container may then be started by opening a terminal and running a command of the form:

apptainer run --nv \
  --bind /path/to/data:/data \
  docker://quay.io/rosalindfranklininstitute/napari-clemreg-empanada:latest
Arguments:

  • --nv enables NVIDIA GPU support on Windows and Linux. If you don't have a NVIDIA card or are on MacOS, you can omit this option, but the plugins may not function correctly.
  • --bind /path/to/data:/data is required to access data outside the common locations provided by Apptainer by default (/home/$USER). Replace /path/to/data with the actual path to the data directory on your host machine

Docker

A running X server must be accessible on the host. X11 will be present by default in most Linux and WSL (Windows Subsystem for Linux) setups, and can be made accessible to containers by running xhost +local: from the command line (xhost + if you are using a remote connection). MacOS users may use a program such as XQuartz. The container may then be started with

docker run \
  --gpus all \
  -v /path/to/your/data:/data \
  -e DISPLAY=$DISPLAY \
  -v /tmp/.X11-unix:/tmp/.X11-unix \
  --device=/dev/dri:/dev/dri \
  quay.io/rosalindfranklininstitute/napari-clemreg-empanada:latest
Similar to Apptainer's --nv, --gpus all may be omitted on a system with a NVIDIA drive, but the plugins may not function, and /path/to/data should be edited to the actual path to your image dataset (unlike Apptainer, Docker does not mount any directories by default).

Using Napari

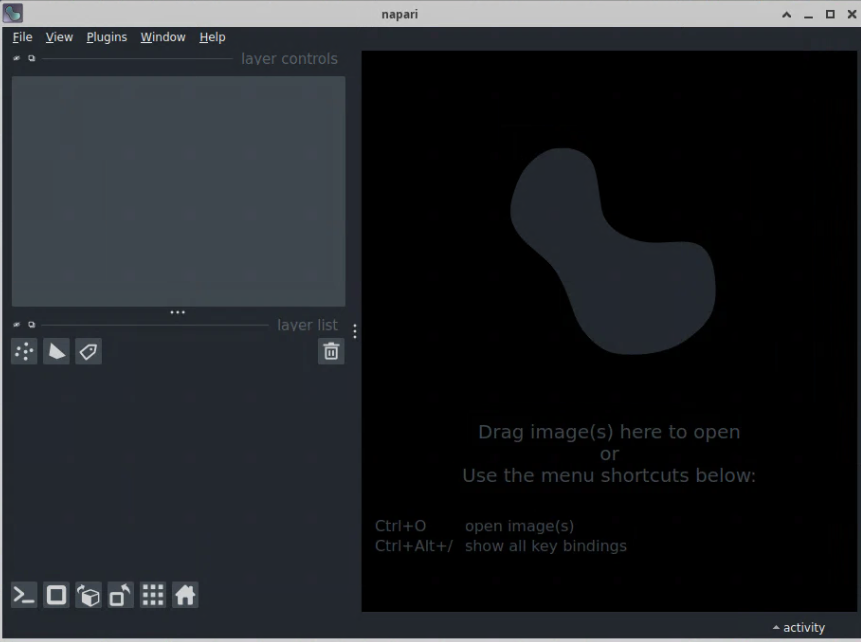

If successful, the Napari GUI should open after executing the Apptainer or Docker run commands:

Tip

If the container fails to start, try Troubleshooting and Support below.

The Napari GUI

Info

You must keep the terminal window open after launching Napari. To avoid this restriction, you can add & disown to the end of either apptainer or docker commands above.

Image data may be loaded from the file menu (shortcut Ctrl+O) where it will appear under Layer List on the left-hand side of the interface. For multi-dimensional images, sliders at the bottom of the viewing pane allow you to step through additional axes (e.g. third dimension or time).

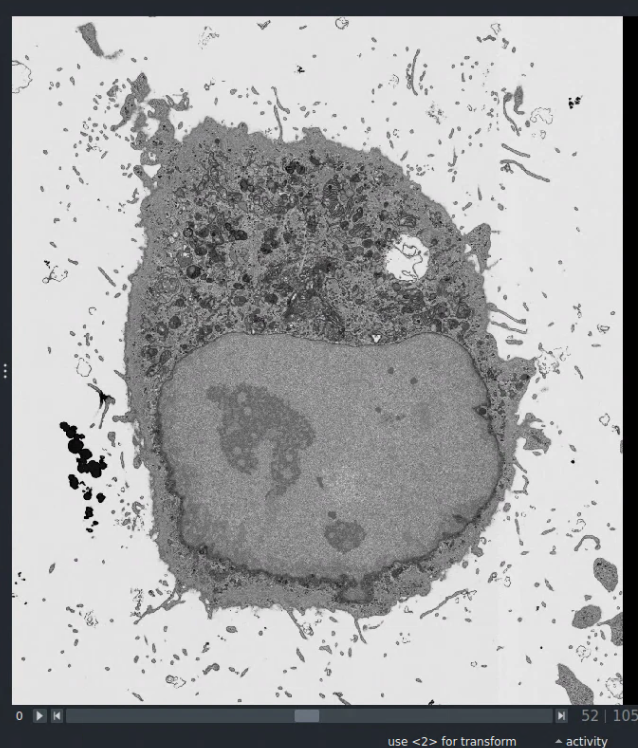

The Napari Image Pane The Napari Image Pane with Sample Data from the CLEM-Reg Paper1.

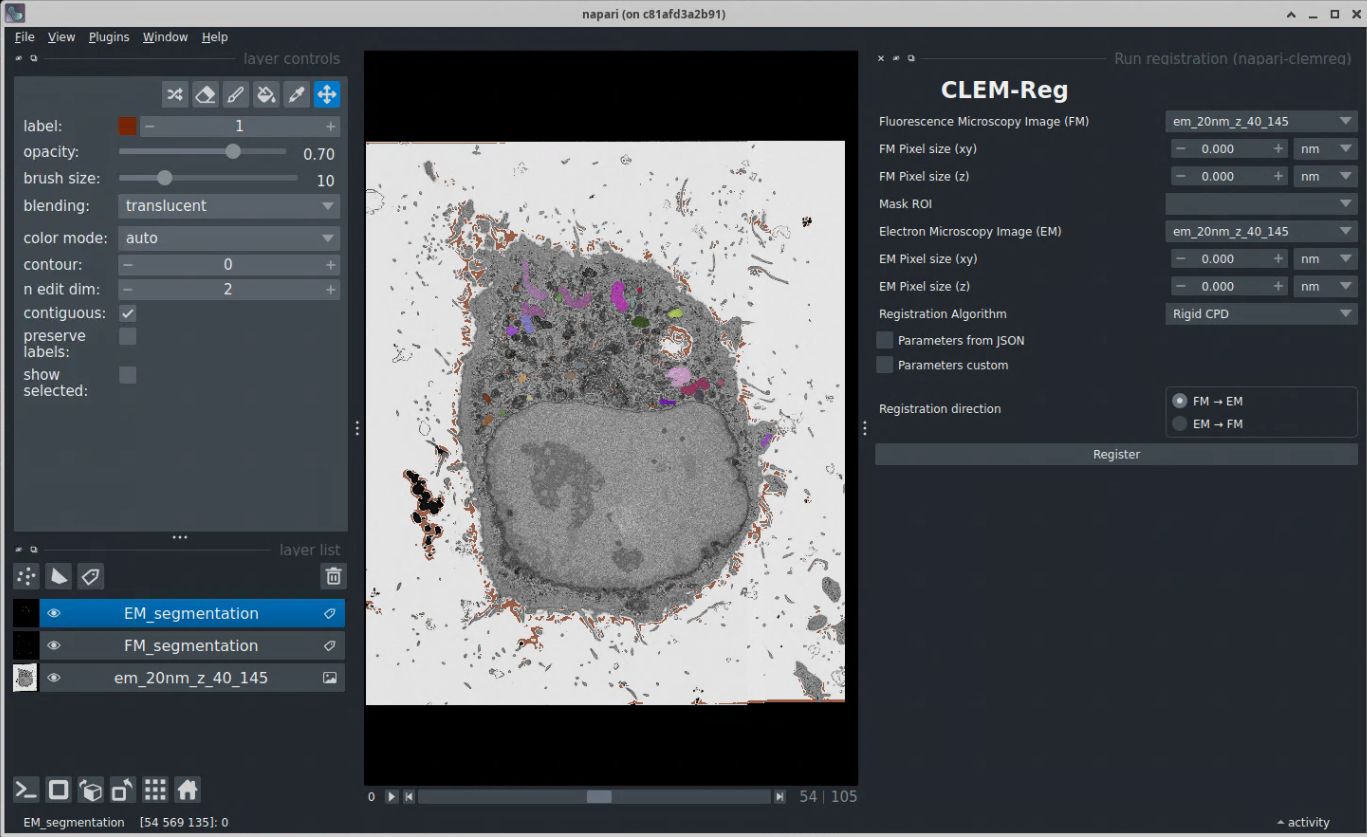

The CLEM-Reg and Empanada plugins may be accessed via the Plugins menu. Selecting a function under either plugin will open a new panel to the right-hand side of the screen, from which registration/segmentation processes can be configured and started. The screenshot below shows the result of running CLEM-Reg registration on the vEM sample dataset of HeLa cells provided with the original CLEM-Reg study1.

CLEM-Reg Example Registration

For further information on using CLEM-Reg and Empanada, see their respective GitHub repositories:

Both provide links to free test datasets you can use to confirm the plugins are working.

Info

Napari is primarily used through its GUI, but also provides a CLI (e.g. for batch processing) and may be imported and used in Python scripts (N.B. you must use /opt/Python-3.9.21/python executable within the container). See Running napari headlessly

Troubleshooting and Support

Known Issues

D-Bus library incorrectly set up (Apptainer)

Napari may fail to start with the error

D-Bus library appears to be incorrectly set up: see the manual page for dbus-uuidgen to correct this issue.
(Failed to open "/var/lib/dbus/machine-id": No such file or directory; UUID file '/etc/machine-id' should contain a hex string of length 32, not length 0, with no other text)
A quick solution is to bind your host machine-id to the container:
apptainer run --nv \
  --bind /path/to/data:/data \
  --bind /var/lib/dbus/machine-id:/var/lib/dbus/machine-id
  docker://quay.io/rosalindfranklininstitute/napari-clemreg-empanada:latest

Unable to find target for this triple

If the program crashes when running the plugins with an error

Program aborted due to an unhandled Error:
Unable to find target for this triple (no targets are registered)
This is likely because the application cannot access your NVIDIA card from within the container. Make sure you have a NVIDIA Card with updated driver software and are using --nv or --gpus all in the apptainer/docker commands. To check whether Apptainer/Docker is correctly presenting your GPU, you can start an interactive Shell in the containers with apptainer shell --nv image-url or docker run -it image-name (see Running Containers).

Getting help

If you are still experiencing issues, you can Create a new issue on the container GitHub repository. Please share as much information as you can regarding your host system (operating system, container runtime), the commands you are trying to run as well as any error messages.

Version and license information

Python package dependency conflicts between Napari and its plugins can create significant installation challenges. The containerisation aims to address this issue by providing a stable, version locked instance of Napari the CLEM-Reg, Empanada plugins. The chosen versions are:

  • napari: 0.4.18
  • clemreg: 0.2.1
  • empanada: 1.2

The container is distributed under an Apache 2.0 License. If you are using this software in your work, considering giving attribution to Napari and the CLEM-Reg1, Empanada2 publications.

  1. Krentzel, D. et al., Nature Methods 22, 1923–1934 (2025). ↩↩↩

  2. Conrad, Ryan et al. Cell Systems, Volume 14, Issue 1, 58 - 71.e5. ↩
